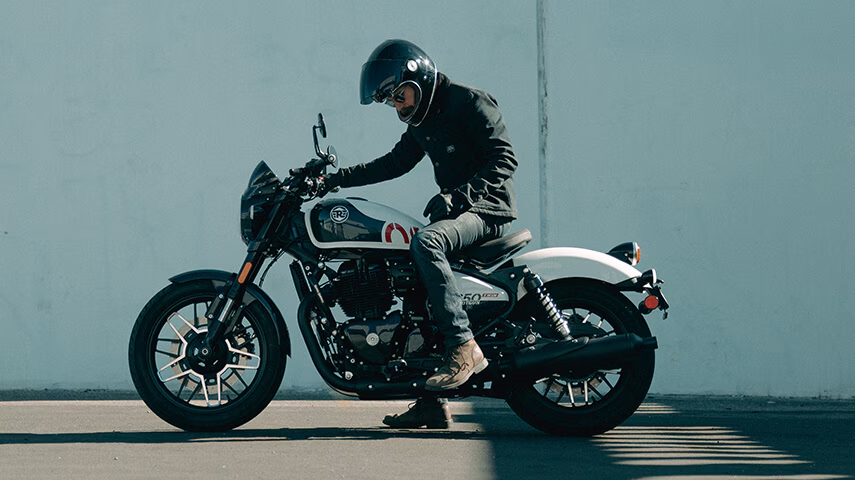

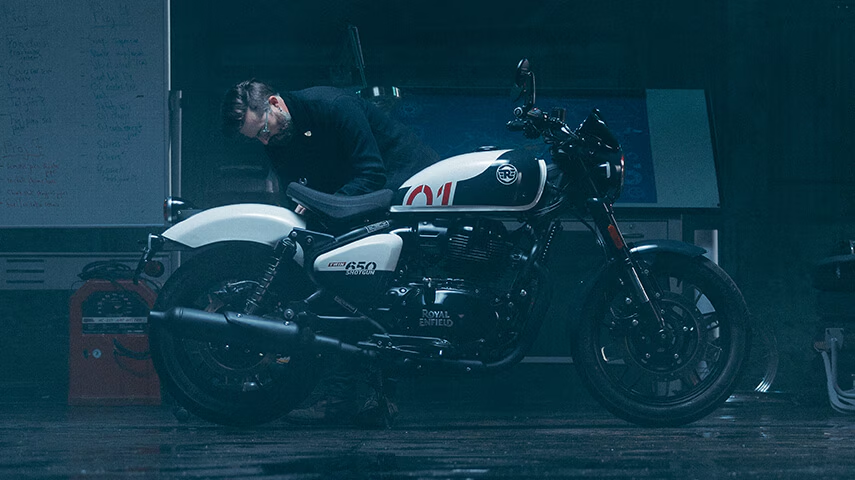

Shotgun 650

A CENTURY OF PURE MOTORCYCLING DNA COLLIDED WITH THE ANARCHIC SPIRIT OF CUSTOM CULTURE AND A SHAPESHIFTING MUTANT WAS BORN:

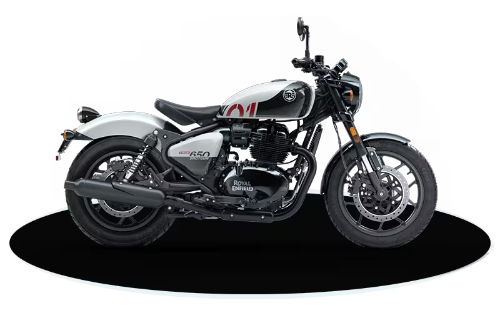

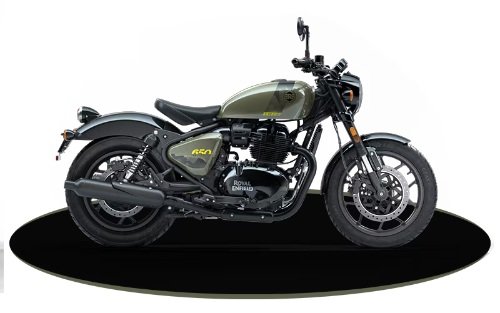

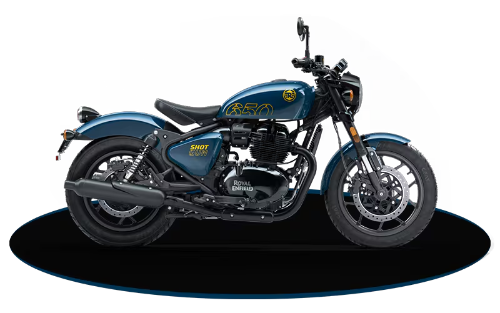

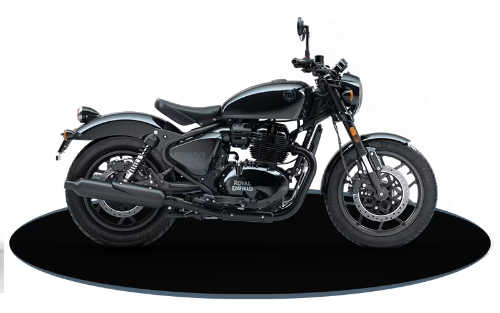

COLOURWAYS

Technical Specifications

ENGINE

Type

Parallel Twin, 4 Stroke, SOHC, Air-Oil Cooled

Displacement

648 CC

Bore X Stroke

78 MM X 67.8 MM

Compression Ratio

9.5:1

Maximum Power

34.6 KW @ 7250 RPM

Maximum Torque

52.3 NM @ 5650 RPM

Clutch

Wet, Multi-Plate

Gearbox

6 Speed Constant Mesh

Fuel Supply

Electronic Fuel Injection

Air Cleaner

Paper Element

Engine Start

Electric

Fuel Consumption

22 KM/L

DIMENSIONS

Wheelbase

1465 MM

Ground Clearance

140 MM

Overall Length

2170 MM

Overall Width

820 MM

Overall Height

1105 MM

Seat Height

795 MM

Rake (0-Up)

25.3°

Trail (0-Up)

101.4 MM

Kerb Weight

240 KG (With 90% Fuel & Oil)

Maximum GVW

428 KG

Fuel Capacity

13.8 Litres

BRAKES & TYRES

Tyres Fr.

100/90-18 M/C 56H (Tubeless Type)

Tyres Rr.

150/70 R17 M/C 69H (Tubeless Type)

Brakes Front

Single 320 MM Disc, Twin Piston Floating Caliper

Brakes Rear

Single 300 MM Disc, Twin Piston Floating Caliper

ABS

Dual Channel

ELECTRICALS

Battery

12 Volt, 12 AH, VRLA

Head Lamp

FPL 1.55 W LED

Tail Lamp

2.5 W, LED

Charging Port

USB 2.0 Type A - 5V 2A Output
